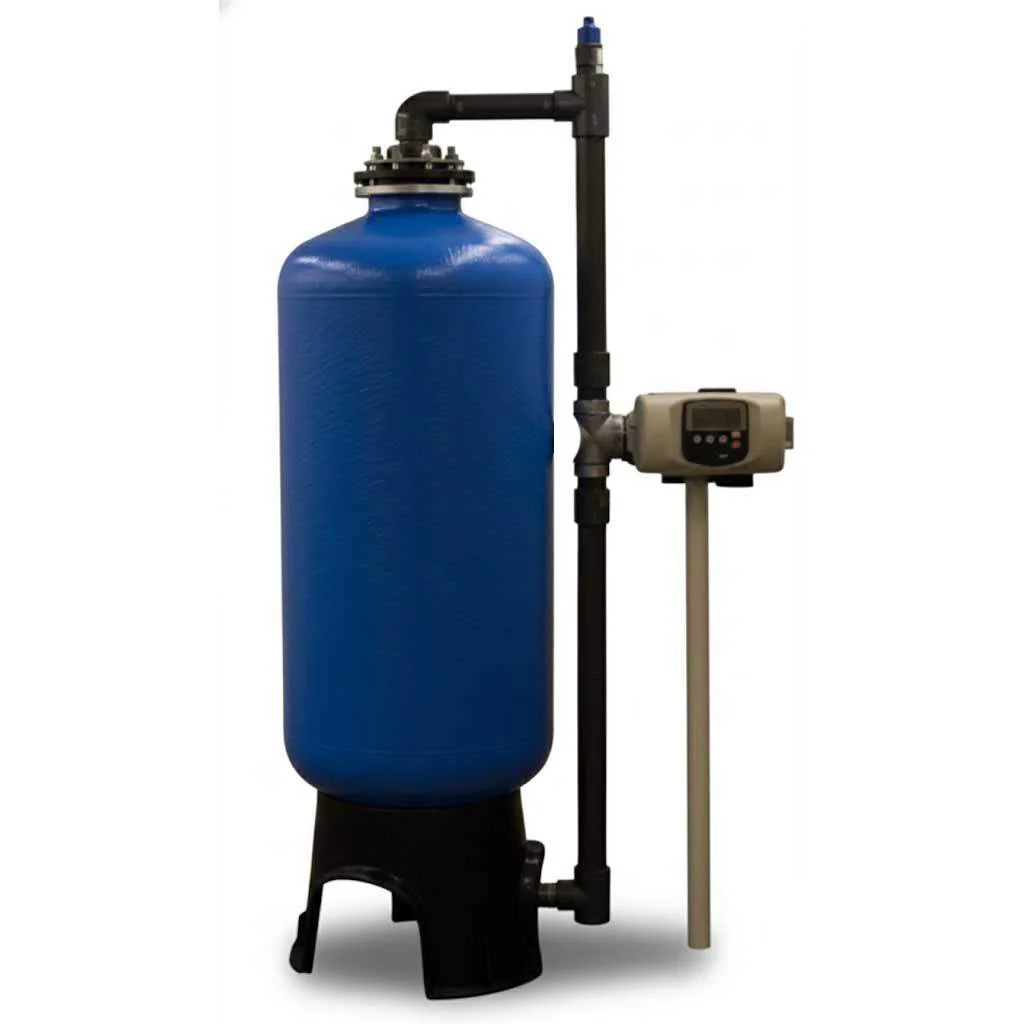

Simplex Water Softener with Clack WS3 Digital METER Controller 3" (40.0 - 56 m³/hr)

Product image 1
Product image 2
Product image 3

Simplex Water Softener with Clack WS3 Digital METER Controller 3" (40.0 - 56 m³/hr)

Product Description

3" in/out connections

These Simplex water softeners use high quality vessels and superior softening resin. The units are controlled with a Clack WS3 CI multiport valve on top of the vessel allowing automatic regeneration.
Systems can regenerate after a given time (time) or quantity of water (metered).

Systems range in size from 500 l/ per hour to 50,000 litres per hour.

All systems come with vessel, valve, resin, brine tank and all fittings. In commercial softeners the brine tank sits next to the resin filled resin rather than the vessel sitting inside the brine tank. The very reliable multiport valve can record system information such as average and maximum flow rates.

Timed controlled models regenerate automatically every 2 or 3 days. Meter controlled versions monitor the amount of water used to regenerate when it needs to.
This softener is supplied partially assembled for shipping. Some assembly will be required. All components and instructions will be supplied.





* Estimated weight of the system without water or salt.
** Sizes may vary dependent on components used and should only be used as a guide.

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Connection IN & OUT: 3"
Drain connection(*): 3"
Electrical rating: 230V 50Hz 24V Transformer
Max power rating: 24W
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 700 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 43°C

Resin

Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances

Ion exchange ( for average salt consumption of 150 g/L )



Flow Rate



Remarks
The interval between regenerations should not be more than 4 days, to prevent bacteria growth.
Select Size
From $3,709.45

Original: $12,364.84

-70%
Simplex Water Softener with Clack WS3 Digital METER Controller 3" (40.0 - 56 m³/hr)—

$12,364.84

$3,709.45

Product Information

Shipping & Returns

Description

Product Description

3" in/out connections

These Simplex water softeners use high quality vessels and superior softening resin. The units are controlled with a Clack WS3 CI multiport valve on top of the vessel allowing automatic regeneration.
Systems can regenerate after a given time (time) or quantity of water (metered).

Systems range in size from 500 l/ per hour to 50,000 litres per hour.

All systems come with vessel, valve, resin, brine tank and all fittings. In commercial softeners the brine tank sits next to the resin filled resin rather than the vessel sitting inside the brine tank. The very reliable multiport valve can record system information such as average and maximum flow rates.

Timed controlled models regenerate automatically every 2 or 3 days. Meter controlled versions monitor the amount of water used to regenerate when it needs to.
This softener is supplied partially assembled for shipping. Some assembly will be required. All components and instructions will be supplied.





* Estimated weight of the system without water or salt.
** Sizes may vary dependent on components used and should only be used as a guide.

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Connection IN & OUT: 3"
Drain connection(*): 3"
Electrical rating: 230V 50Hz 24V Transformer
Max power rating: 24W
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 700 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 43°C

Resin

Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances

Ion exchange ( for average salt consumption of 150 g/L )



Flow Rate



Remarks
The interval between regenerations should not be more than 4 days, to prevent bacteria growth.
